從放大電路形式，可以采用線性放大電路和開關電源電路，大功率超聲波電源從轉換效率方面考慮一般采用開關電源的電路形式。線性電源也有它特有的應用范圍，它的優點是可以不嚴格要求電路匹配，允許工作頻率連續快速變化。

From the form of amplifier circuit, linear amplifier circuit and switching power supply circuit can be used. Considering the conversion efficiency of high-power ultrasonic power supply, the circuit form of switching power supply is generally adopted. Linear power supply also has its unique application range. Its advantage is that it can not strictly require circuit matching and allow continuous and rapid change of working frequency.

超聲波清洗機的使用方法：

Usage of ultrasonic cleaning machine:

1、超聲波清洗機的使用電源(220V)用三芯插座(相線、零線、地線)。

1. The power supply (220 V) of ultrasonic cleaning machine uses three core socket (phase line, zero line and ground wire).

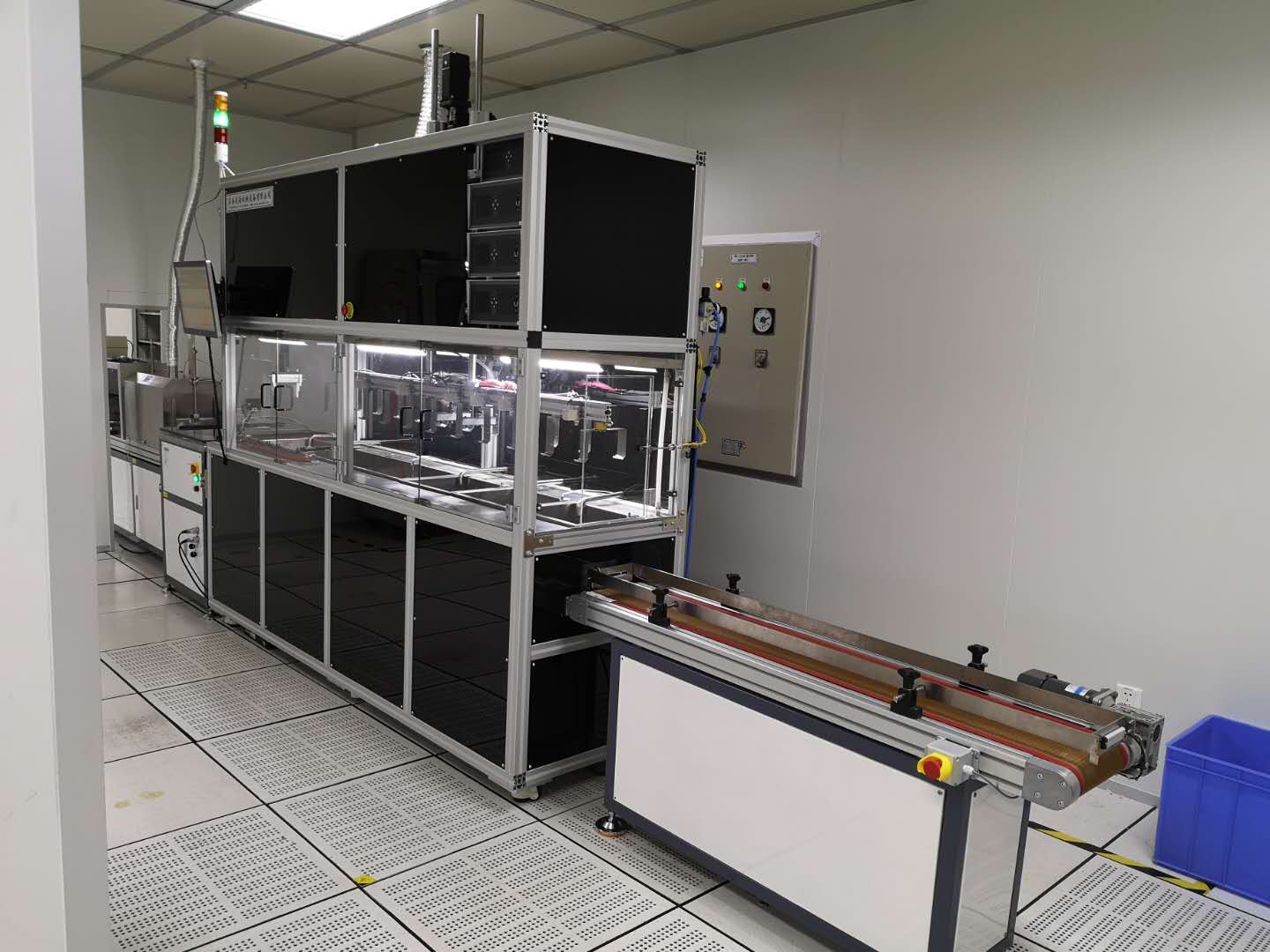

超聲波清洗機生產廠家

Manufacturer of ultrasonic cleaning machine

2、清洗槽內須加入清洗液或水。清洗液或水的液面不得低于清洗槽高度的三分之二(佳位置應于網籃上沿口平齊)。清洗時，請根據不同的清洗要求，添加洗滌劑，加強清洗效率，所有洗滌劑須符合不腐蝕清洗機內槽、機體的要求。

2. Cleaning solution or water must be added into the cleaning tank. The liquid level of cleaning liquid or water shall not be lower than two thirds of the height of the cleaning tank (the best position should be flush with the mouth of the basket). When cleaning, please add detergent according to different cleaning requirements to enhance the cleaning efficiency. All detergents must meet the requirements of non-corrosive cleaning machine inner tank and body.

3、將被清洗物質放入金屬框內，根據清洗物的積垢程度，設定清洗時間，一般3-10分鐘，特別難清洗的物質，可適當延長清洗時間。(嚴禁把被清洗物質直接放在清洗槽底使用)。

3. Put the material to be cleaned into the metal frame, and set the cleaning time according to the scale degree of the cleaning material, generally 3-10 minutes. If it is particularly difficult to clean, the cleaning time can be appropriately extended. (it is strictly forbidden to put the material to be cleaned directly at the bottom of the cleaning tank).

4、將超聲波清洗機的電源插頭插入220V的三芯電源插座，開啟電源開關設定好超聲工作時間，按“啟動/停止”鍵開始工作，此時液面呈現蛛網狀波動，且伴有振響，表示清洗機已進入工作狀態。

4. Insert the power plug of the ultrasonic cleaning machine into the 220 V three core power socket, turn on the power switch, set the ultrasonic working time, and press the "start / stop" key to start working. At this time, the liquid level presents arachnoid fluctuation with vibration, indicating that the cleaning machine has entered the working state.

5、較重的物件應通過掛具懸掛在清洗液中。

5. Heavy objects should be suspended in the cleaning solution through a hanger.

從目前超聲業界的情況看，超聲波主要分為自激式和它激式電源;超聲波電源的使用主要是要根據換能器功率的大小、頻率的高低、電容量去匹配就可以。功率較小的可以使用自激式，功率較大的建議使用它激式。

According to the current situation of the ultrasonic industry, ultrasound is mainly divided into self-excited power supply and other excitation power supply; the use of ultrasonic power supply mainly depends on the size of transducer power, frequency and capacitance to match. The self excitation type can be used for the smaller power, and the other excitation type is recommended for the larger power.
